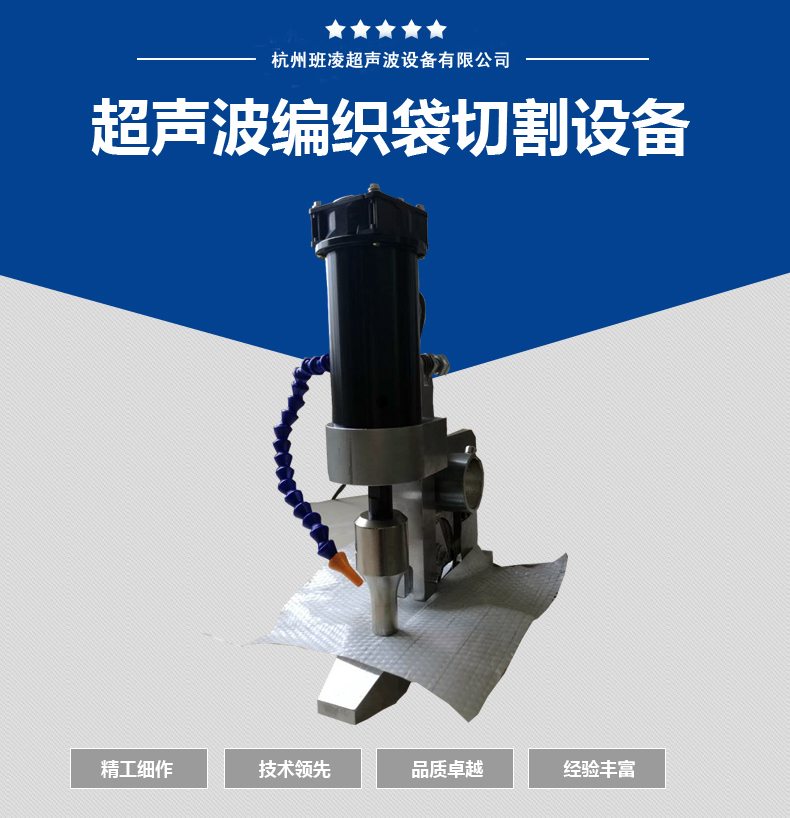

The ultrasonic woven bag (snake skin bag) cutting equipment consists of ultrasonic transducer, shell, horn, tool head, driving power supply, bottom mould and rack. The ultrasonic transducer is equipped with a fan to cool down, ensuring that it can work efficiently for a long time. The ultrasonic wave produces energy with tens of millions of vibration, 20 millimeter wide welding, and half cutting with the blade, so the cutting point will not wear the edge or cloth edge like the conventional cutting, and it will be very smooth.
The main advantages of ultrasonic woven bag cutting equipment are as follows:
1. the cutting effect is very good, the cutting edge is very smooth, without burrs.
2. cutting speed is fast, reducing labor intensity and saving cost.
3. simple operation, easy to install on the machine
4. precise cutting force control
5. there is a cooling device that can work efficiently for a long time
Product specifications:
|
项 目
|
说 明
|
|
型 号
|
BR-30W2
|
BR-30WC2
|
|
选 择
|
如果有切割刀及架子，就选这款
|
如果没用过超声波，就用这款
|
|
焊接切割厚度
|
2MM
|
|
最大切割速度
|
50CM/S
|
|
频 率
|
30kHZ
|
|
工具头
|
直径10mm 或20mm，特殊要求可订制
|
|
产品净重
|
15KGS
|
25KGS
|
|
电 压
|
220V±10或110V±10,50HZ/60HZ
|
|
电线
|
标准配3米，特殊长度需说明
|
The main application fields of the product:
Ultrasonic cutting equipment is suitable for cutting woven bags (snake skin bags, plastic rice snake skin bags).
Applicable to circular loom
At work
Welding width: 10MM OR 20MM, then cut into 5MM OR 10MM..
The test shows:
|
