Product introduction:

The ultrasonic dispersing equipment is mainly composed of ultrasonic transducer, shell, horn, tool head (probe) and numerical control driving power supply.

The effect of ultrasonic cavitation is mainly used. The ultrasonic wave produces hundreds of thousands of vibrations per second in the liquid, breaking the liquid into a large number of tiny bubbles, which will rapidly increase under continuous action, and then suddenly close and produce super strong shock waves, producing pressure and local high temperature of thousands of atmospheres around the bubbles. This physical phenomenon is called ultrasonic cavitation. Yes. Ultrasonic generator output high frequency voltage signal drives ultrasonic transducer to produce ultrasonic wave. It makes use of the huge energy produced by the cavitation effect to strongly disperse the liquid flowing through the equipment, and plays the effect of homogenization. At the same time, the tiny bubbles in the liquid can be removed, and the large particles can be crushed to prevent precipitation from reaching the requirement of homogeneous treatment.

The main advantages:

1. frequency and power size is optional, 40 kHz - 20 kHz, 200W - 3000W.

2. overcurrent and overvoltage protection function to ensure system safety.

3. frequency automatic tracking and adjustment, avoiding the large power fluctuation caused by the change of the load impedance with the ambient temperature and working medium.

4. constant power operation, the effect is good.

5. the numerical control generator is small in size, light in weight and efficient.

6. the structure is reasonable, easy to ventilate and dissipate heat, and continuous operation is reliable.

7. modular design can be composed of hundreds of watts or several kilowatts of power units to make up more than dozens of kilowatts of power, which is beneficial to the optimal combination of transducers and ensure that the transducer works in the best state; if a power supply fails, the other units can still work normally and facilitate the maintenance of damaged units.

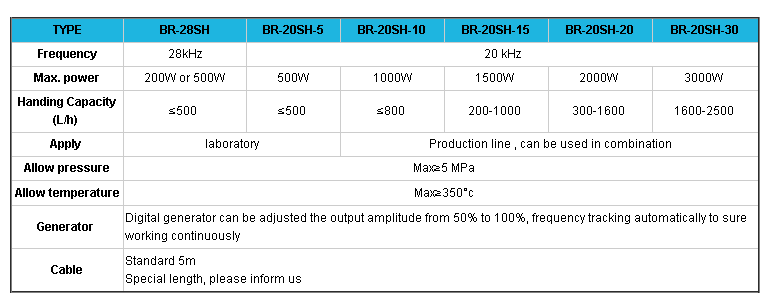

Product specifications:

The main application fields of the product:

It is suitable for the dispersion of food industry, chemical industry, water treatment, cosmetics and other industries.

Use in the production line：
