The ultrasonic sonochemical system consists of ultrasonic transducer, shell, horn, tool head (probe) and driving power supply. The ultrasonic transducer is equipped with a fan to cool down, ensuring that it can work efficiently for a long time.
When ultrasonic wave propagates in liquid medium, it produces a series of effects, such as mechanics, heat, optics, electricity and chemistry through mechanical, cavitation and thermal action. In particular, high power ultrasonic waves produce strong cavitation, resulting in transient high temperature, high pressure, vacuum and micro jets. For chemical reaction, a small local environment which is very conducive to the reaction process is created, which can greatly improve the reaction speed and reduce the reaction conditions. As for the extraction of biomass, the destruction of the cell wall and the rapid infiltration of the solvent will result in the rapid dissolution of the extracted effective components into the solvent, thus improving the extraction rate, shortening the extraction time and saving the solvent. Ultrasound can accelerate the enhancement of various chemical reactions. It has been widely applied in pharmaceutical industry and chemical production. The application of ultrasonic to the processing of biomass resources is a hot spot of research and development in recent years. The most representative work is ultrasonic for the intensive extraction of plant active components and the application of ultrasonic to the preparation of biodiesel.

Characteristic:
1. the treated liquid is held in the container, and the probe is inserted into the liquid to transmit ultrasonic waves. The volume of liquid can be large and small, and the time can be long and short. Generally speaking, the ultrasonic intensity in the whole container is not uniform. The closer the probe is, the stronger the ultrasonic wave is.
2. the nominal power of each unit is 0~3000W, and the power size can be adjusted. It can be used in multiple units.
3. tool head (probe) shape, length and material can be customized according to requirements.

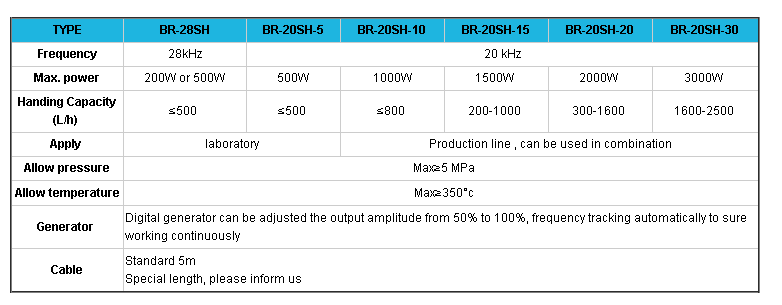

Product specifications:

The main application fields of the product:
It is mainly used for extraction of essential oils, natural pigments, polysaccharides, flavonoids, alkaloids, polyphenols, organic acids and oils. Ultrasonic cell comminution, essential oil extraction, natural pigment extraction, polysaccharide extraction, flavonoids extraction, alkaloid extraction, polyphenol extraction, organic acid extraction, oil extraction, traditional Chinese medicine extraction.

Use in the production line:

Use in the production line:
